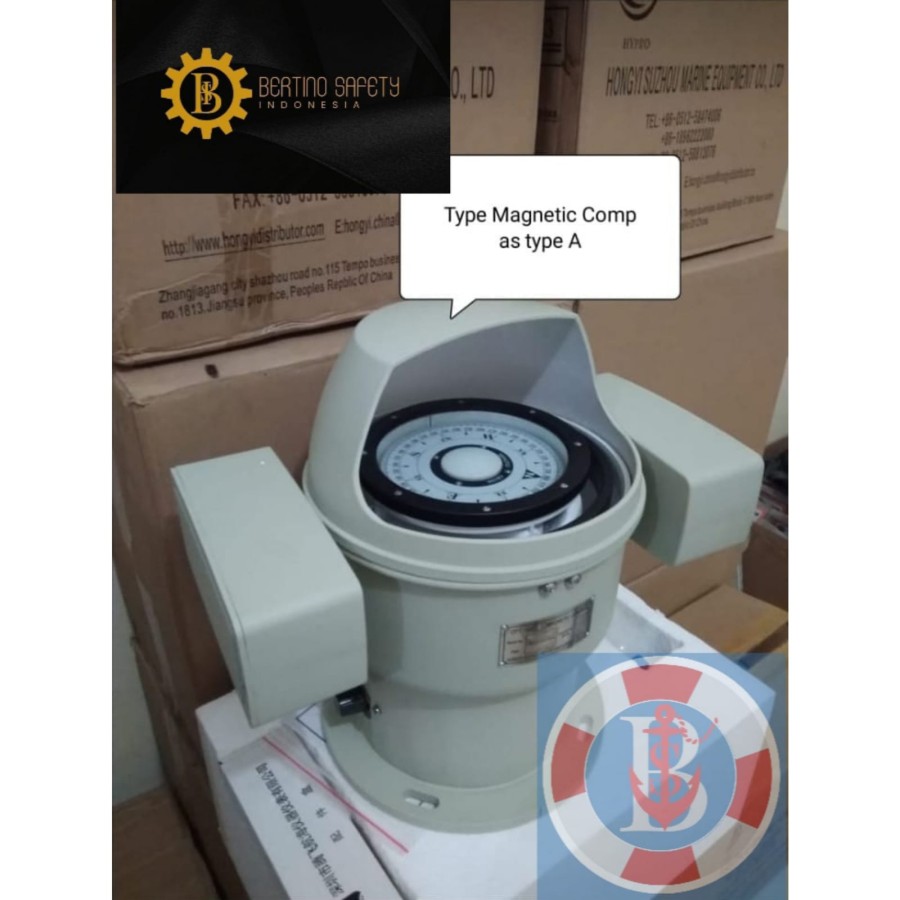

Magnetic Marine Compass / Kompas CPT-130A

Description

This compass is a good kind of liquid compass. It is designed to meet the technical requirements of GB/T10104-1995 and ISO-449 standards referring class A magnetic compass.
It is simple to construction,easy to operate and substantial in economy.

Main Technical Data:
Card diameter Φ130mm
Power Supply 24V

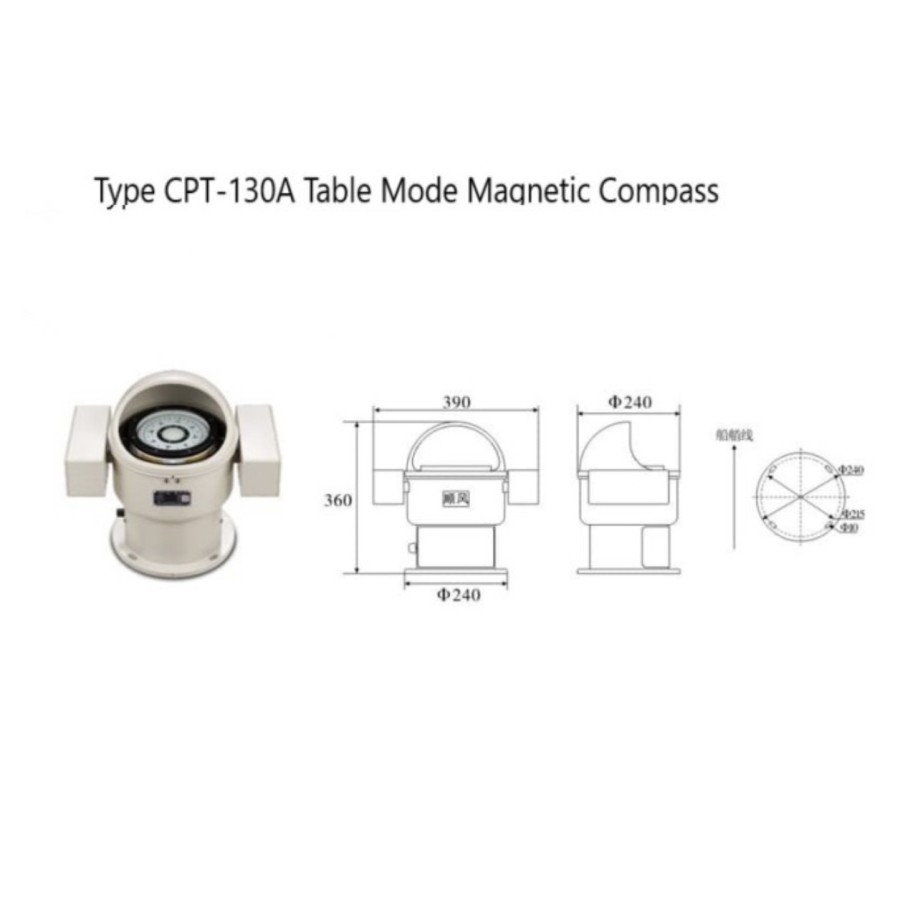

Overall dimension 240×390×360mm
Dimensions of mounting holes Φ215×4 – Φ 10(the four holes are even-arranged)
Weight 7.5kg
Correcting pure iron sheets for quadrant self-deviation 10pcs
Correcting magnetic bars 10pcs
